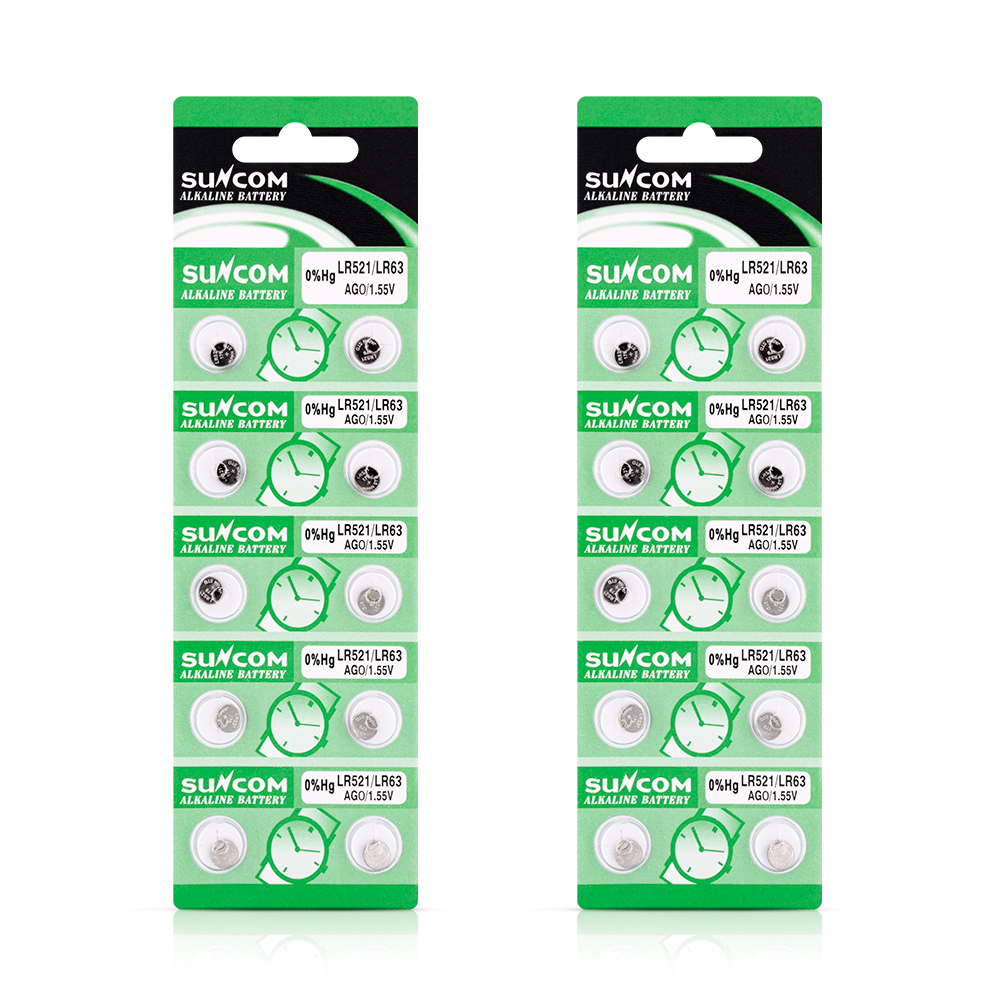

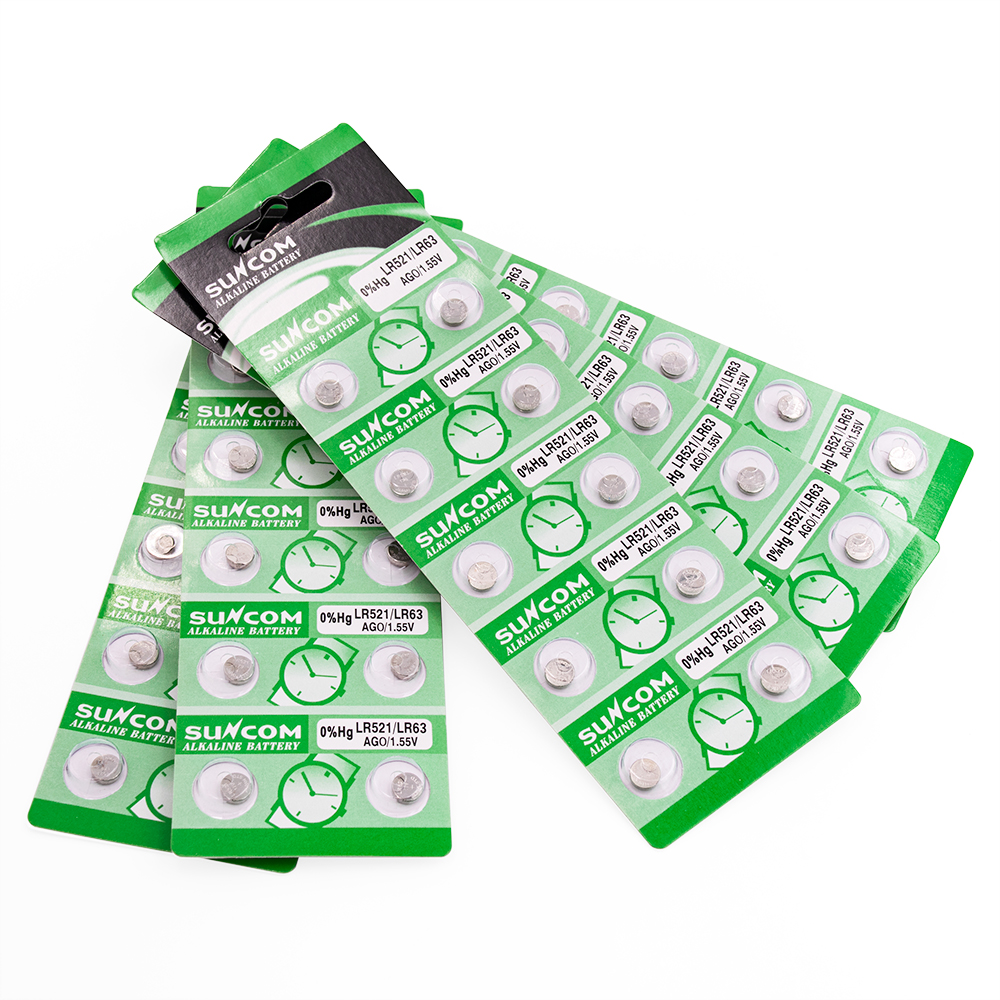

Brand: SUNCOM
Model: LR521/AGO/LR63
Type:Alkaline environmentally friendlybutton battery
Voltage:1.55v
MAH:10.5mAh
Weight: 0.2g
Size:5.8*2.15mm
------------------------------------
1.12months quality warranty.
2.Ultra environmental friendly button cellbattery.
3.Long working time.
4.Made from high-quality materials.
5.Excellent performance.
6.Multi-applicable
7.Excellent storage performance and lowself-discharge rate.
8.Excellent safety performance.
9.MSDS/RoHS/sGS/CE certificate
10.Also if the customers want the batterywith PCB tabs, we can do as their drawing.
| Quantity: | |
|---|---|
LR521/AGO/LR63
SUNCOM
1、Product Type
name:LR521 IEC name:LR63
2、Chemical composition formula
Alkaline battery
3、Technical specifications:
3.1 Specifications and dimensions
height（H）2.15
diameter（φ）5.80
3.2 Average weight ：0.21g
3.3 Rated voltage ：1.50V
3.4 Typical capacity ：9mAh(Under the condition of 20 ± 2 ℃, use 7.5KQ load resistor to discharge continuously, with the termination voltage of 0.90V)
1、Product Type
name:LR521 IEC name:LR63
2、Chemical composition formula
Alkaline battery
3、Technical specifications:
3.1 Specifications and dimensions
height（H）2.15
diameter（φ）5.80
3.2 Average weight ：0.21g
3.3 Rated voltage ：1.50V
3.4 Typical capacity ：9mAh(Under the condition of 20 ± 2 ℃, use 7.5KQ load resistor to discharge continuously, with the termination voltage of 0.90V)
